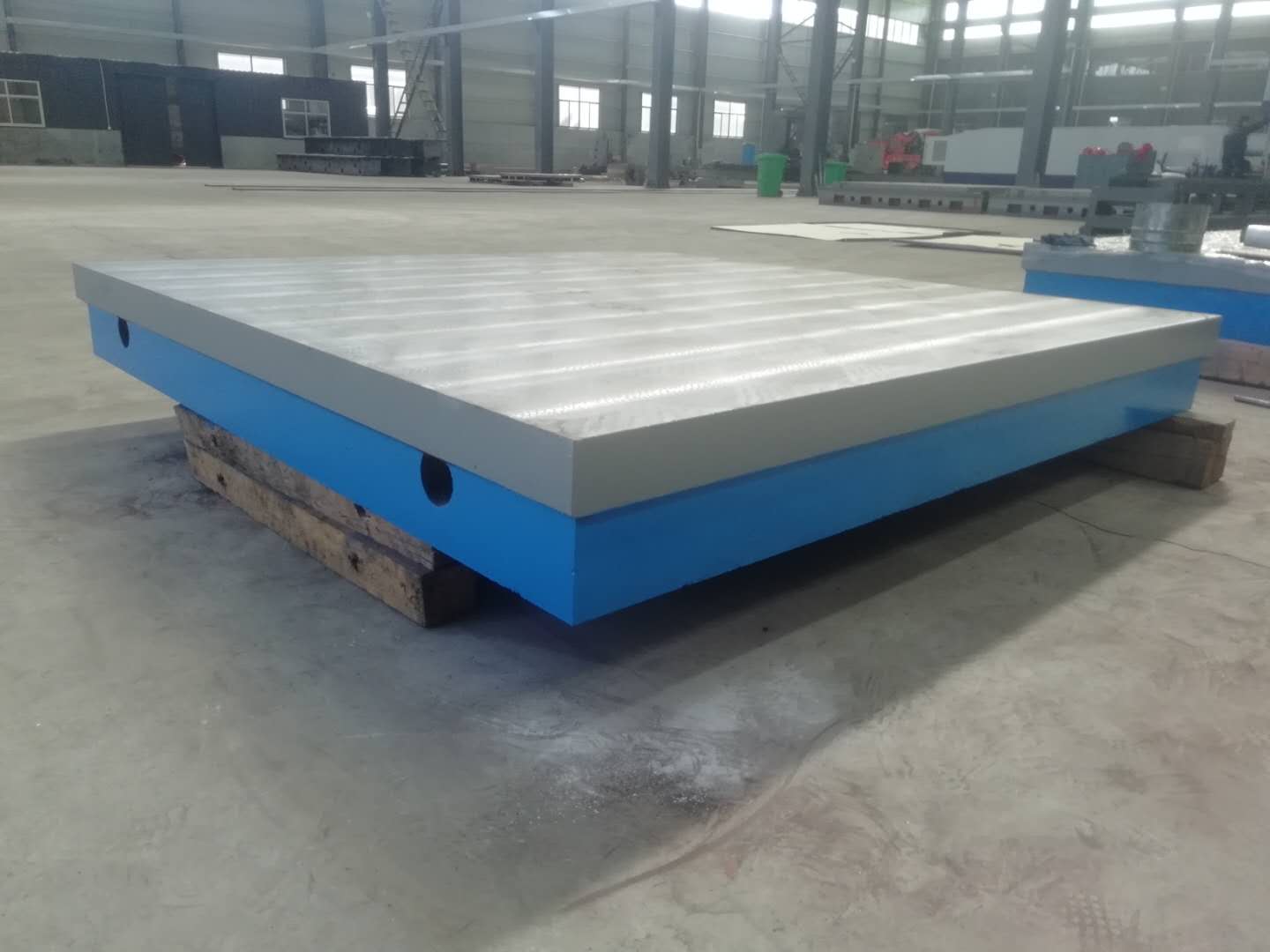

2500 X 1500 mm Cast Iron Inspection Layout Plate
Cast Iron Inspection Layout Plate Materials and Processing:
(1) The material of our surface plate/table is cast iron HT200-350
(2) Working surface hardness is HB170-240
(3) Low inaccuracy error and good in grinding resistance.
Willing cast iron inspction layout plate is accurate , economical
and most reliable floor surface plate available. The design of the
plate fits the need for quality control in various industries. We
have experience from setting uo large sized floor plates for test
bed applications. the highlight of cast iron inspection layout
plate is that it will not vary with temperature changes, distort
under it's own weight or even need adjusting to maintain level.
There can also be used as test beds for mounting engines,
transmission equipment of large machines.
Precision: According to the national standards measurement examination
regulations execution respectively is 0,1,2
| Specification (mm) | Flatness tolerance (um) |
| | Grade2 | Grade 3 | Finihs plane |
| 1000x750 | | 36 | 90 | |
| 1000x1000 | | 39 | 96 | |
| 1500x1000 | | 48 | 120 | |
| 2000x1000 | | 52 | 129 | |
| 2000x1500 | | 56 | 140 | |
| 2000x2000 | | 60 | 152 | 230 |
| 2500x1500 | | 68 | 168 | 248 |
| 3000x1000 | | | 174 | 248 |
| 3000x2000 | | | 184 | 275 |
| 3000x3000 | | | 210 | 300 |
| 4000x1000 | | | 210 | 300 |
| 4000x2000 | | | 219 | 310 |
| 4000x3000 | | | 240 | 360 |
| 5000x2000 | | | 255 | 375 |
| 5000x3000 | | | 287 | 420 |
| 6000x2000 | | | 293 | 430 |
| 6000x3000 | | | 308 | 460 |
| 8000x2000 | | | 370 | 520 |
| 8000x3000 | | | 382 | 570 |
