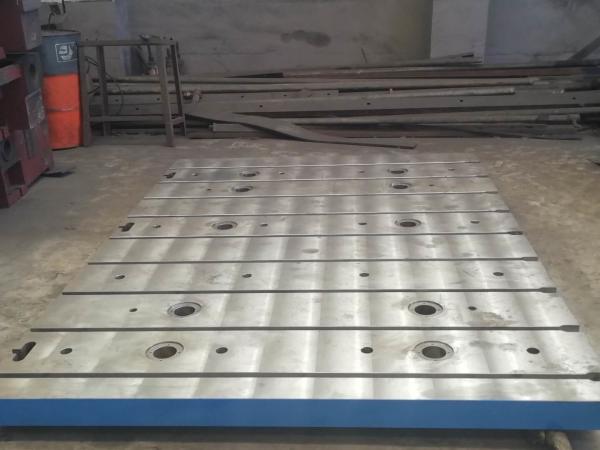

T Slotted Cast Iron Floor Plates Custom-Made

T- slots are machined according to DIN 650 , with popular metric or SAE sizes . T-slots can be machined to width tolerance H7 or H8 at extra cost. Depth of T- slots can also be increased in cases of extremely high pull- out loads. Casted pockets, as required, are provided along the T- slot enable inserting and removal of T- nuts. T- slots can be machined in longitudinal and transversal direction depending on your requirements as well as threaded holes and fitting holes.

Precision: According to the national standards measurement examination regulations execution,

respectively is 1,2,3, fine polish.

Installation and adjustment

When used surface plate ,you should first installation debugging,then you can use it . No significance work on surface plate if they aren't properly positioned .Surface plate should setup on level off, firm without shock place .please first put the pad iron down ,then put the surface plate on the pad iron ,removal the wooden case and oil . Measurement with the levelness of the surface plate ,when the surface plate isn't level ,please adjust the pad iron .( In the process of adjusting attention to safety)

Notice for use

1: To the best uniform use of the flat plate throughout, to avoid local grinding concave.
2: Keep the plate clean, prevent be wroned by iron scrap, sand ...
3: Put down workpieces on the plate gently, prevent the flat surface be impacted, once the plate surface hit the workpiece or other objects,repair impact and the convex part immediately.
4: Do not do any hammer work on the surface plate .
5: After use, should be clean it. If long time no use should not be coated with anti rust oil to prevent corrosion.

Willing Measuring Tools Co. Ltd was established in 2000, which is one of the earliest factories specializing in making all kinds of precise measuring tools. After more than 10 years of continuous innovation and development, the factory has formed an entity system with a certain scale of productivity. We are at the domestic advanced level, especially in terms of innovation ability, technical strength and production experience, etc.

The company mainly produces all kinds of measuring tools, each product produced by our company is in line with the requirements of the relevant industries in the country. Our company also has independent laboratories, and has imported a large number of advanced production equipments. With good management model and a advanced production system, the quality of the machines and the delivery time has been well guaranteed. Because of this, the company's brand is increasingly accepted by customers at home and abroad. We also make OEM production for many domestic and foreign brands.

The company has always implemented: "the same quality, lower prices; the same price, higher-quality" business philosophy, and always take the principle of "integrity, struggle, hard work" as a development objective and "customer satisfaction " as our final goal. We are willing to go forward with all the friends hand in hand. Warmly welcome domestic and foreign customers to visit our company for guidance. All employees of Willing Measuring Tools Co., Ltd. are looking forward to cooperate with you sincerely.
