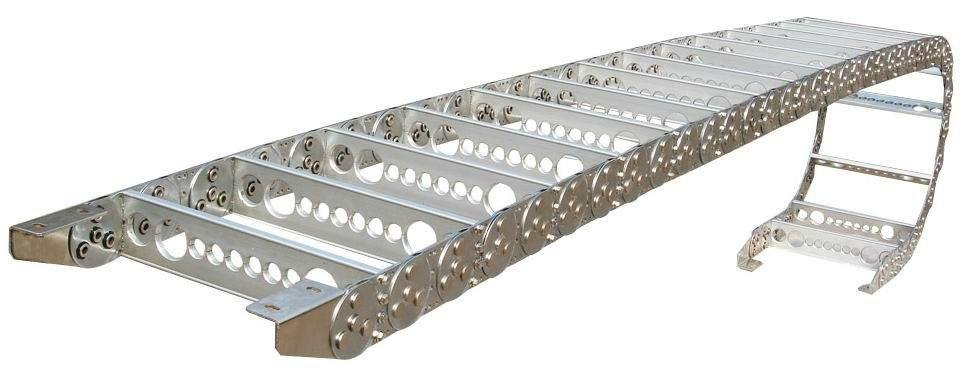

Stainless Steel Cable Drag Chain For Transport And Construction
Machinery
Steel cable drag chain has bridge drag chain (TL) and fully enclosed cable drag chain (TLG). It is divided into 45, 65, 75, 95, 100, 125, 180, 250 types according to the pitch. The support plate of the bridge-type cable drag chain is made of aluminum alloy. The support plate hastype Ⅰ integral type, type Ⅱ split type (easy disassembly and easy installation), type Ⅲ frame type (you can add a separator, the separator is made of nylon. White
and black). The support plate is made of aluminum alloy. The chain
plates and axle pins and joints ofbridge steel drag chains are galvanized steel. His joints can be inside, outside, or inside
and outside. Galvanized steel has poor corrosion resistance and is
mainly used in general machinery and general environments.
The steel cable drag chain is relatively wear-resistant, does not deform, and is easy to install, but it is not suitable for excessively fast mechanical
operations.
Material and Performance
Material: Stainless steel,steel, good toughness and wear resistance
Operating Life: Under normal use, up to 5 million reciprocating
motion.
Drag Chain Selection
High: Select the built-in cable, tubing, the trachea and conduit
maximum height for reference, the height of the drag chain at least
10% of the remaining space.
Wide: Choose the built-in cable, tubing, trachea, the sum of its
outer diameter for reference, the width of the drag chain at least
10% of the remaining space.
Drag Chain Size
| Steel Cable Drag Chain Parameter Table |
| Type | TL45 | TL50 | TL65 | TL75 | TL80 | TL95 |
| Pitch (mm) | 45 | 50 | 65 | 75 | 80 | 95 |
Bending Radus (mm) | R50 | R50 | R75/R90/R115 /R125/R145/R185
| R75/R90/R115 /R125/R145/R185 R200/R250/R300 | R100/R115/R125/ R145/R185/R200/ R250/R300 | R115/R125/ R145/R185/R200/ R250/R300/R400 |
Outer Height (mm) | 30 | 35 | 44 | 50 | 55 | 70 |
Maxium and Minimum Outer Width (mm) | 1,Minimum support width 50; 2,TL45/50/65/75/80 masximum supoort of is not more than 4 times the
pitch; 3,TL95 maximum support no more than six times the pitch |
| Support Plate Type | we have three plate types to choose,I.integral type;II, separate
Type; III, Frame Type |
Support plate Maximum Aperture (mm)
| 15 | 35 | 35 | 35 | 35 | 55 |
