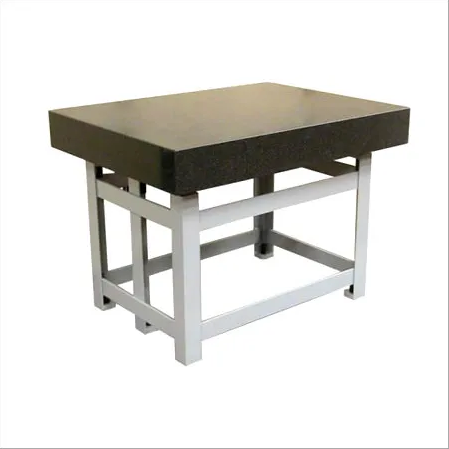

    Grade 00 Black Granite Surface Plate Precision Lab Tables Inspection

    Ask Lasest Price
    Brand Name : FMS
    Model Number : custom-made
    Certification : CO
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 100PC /30days
    Delivery Time : 10 work days
    • Product Details
    • Company Profile

    Grade 00 Black Granite Surface Plate Precision Lab Tables Inspection

    Black Precision Granite Lab Tables Inspection Surface Plates


    Granite Surface Plates are manufactured using natural black granite stone, quarried from earth in its natural form. These precision granite surface plates are precision lapped to high standards of flatness to achieve accuracy and are used as bases for mounting sophisticated mechanical, electronic and optical gauging systems.


    Granite Surface Plates are manufactured using natural black granite stone, quarried from earth in its natural form. These precision granite surface plates are precision lapped to high standards of flatness to achieve accuracy and are used as bases for mounting sophisticated mechanical, electronic and optical gauging systems. Our quality inspectors and engineers put a strict vigilance at all the stages of the production procedure to ensure high quality surface plates.


    Some of the unique features of our granite surface plates are:

    • Uniformity In Hardness
    • Accurate Under Load Conditions
    • Vibration Absorbent
    • Easy To Clean
    • Rust-Proof, Non-Corrosive
    • Lower Coeffficient of Thermal Expansion
    • Warp Resistant
    • Low Porosity
    • Non-Abrasive
    • Non-Magnetic

    Our granite surface plate refers to the advanced standards of the leading countries, and its flatness tolerance is in accordance with the JB/T 7975-1999 Surface Plate:


    Grade 000 =1x(1+d/1000)/μm

    Grade 00 =2x(1+d/1000)/μm

    Grade 0 =4x(1+d/1000)/μm

    Grade 1 =8x(1+d/1000)/μm


    (d is the length of the diagonal)

    Specification
    Length × Width × Thickness (mm)

    Weight (kgs)

    Precision Grade (μm)

    000

    00

    0

    1

    300 × 200 × 50

    17

    1.5

    3

    6

    12

    300 × 300 × 50

    19

    1.5

    3

    6

    12

    400 × 300 × 70

    25

    1.5

    3

    6

    12

    400 × 400 × 70

    48

    2

    3.5

    6.5

    13

    630 × 400 × 100

    76

    2

    3.5

    7

    14

    630 × 630 × 100

    155

    2

    4

    8

    16

    800 × 500 × 130

    156

    2

    4

    8

    16

    1000 × 630 × 130

    284

    2.5

    4.5

    9

    18

    1000 × 750 × 150

    338

    2.5

    5

    9

    18

    1000 × 1000 × 150

    450

    2.5

    5

    10

    20

    1600 × 1000 × 200

    963

    3

    6

    12

    24

    2000 × 1000 × 200

    1200

    3.5

    6.5

    13

    26

    1600 × 1600 × 300

    2312

    3.5

    6.5

    13

    26

    2000 × 1600 × 300

    2890

    3.5

    7

    14

    28

    2500 × 1600 × 300

    3612

    4

    8

    16

    32

    3000 × 2000 × 500

    9030

    4.5

    9

    18

    36

    4000 × 2000 × 500

    12040

    5.5

    11

    22

    44

    6000 × 2000 × 700

    25284

    7.5

    15

    30

    60
