    Precision Measuring Cast Iron Surface Plate T Slot Table Testing

    Ask Lasest Price
    Brand Name : OEM
    Certification : CO, FORM-E
    Price : Negotiable
    Payment Terms : Western Union, T/T
    Supply Ability : 10/monthd
    Delivery Time : 20days
    • Product Details
    • Company Profile

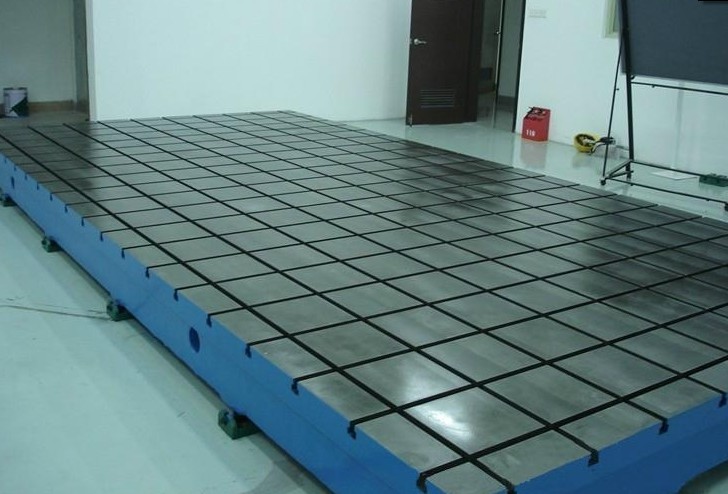

    Precision Measuring Cast Iron Surface Plate T Slot Table Testing

    Precision Measuring cast iron t slot table testing surface plate
    Cast Iron Floor Plates Product Introduction

    T Slotted Cast Iron Floor Plate Are Specially Configured To Suit Customer Requirements. The Cast Iron Floor Plates Design, Dimensions, And Loading Capacity Of The Plate Can Be Tailored To Suit The Size And Weight Of The Work Pieces To Be Clamped.

    The Number And Shape Of The Ribs Can Be Adjusted To Suit The Specified Loading Requirements. The Size Of The T-Slots In The Plates Is Determined By The Customer’S Requirements In Strength, Tensile And Compression.

    The Cast Iron Floor Plates Size Range Is From 100mm*100mm To 3000mm*8000mm. Larger One Can Be Made According To The Drawing.


    Cast Iron Floor Plates Product Parameters
    namecustomized 400x400mm cast iron bed plates for measuring
    keywordcast iron bed plate
    materialGrey iron HT250
    TypeHollow type
    Flatness2 grade
    surface finishhand scrap
    Casting MethodSand Casting
    UsageMachines Measuring
    Customized supportOEM
    SizeAccept Custom
    ColorCustomize

    Cast Iron Floor Plates Product Specification


    Specification (mm)Flatness tolerance (um)
    Grade1Grade2Grade 3Finihs plane
    400x4001224
    600x4001428
    800x500163280
    900x600163280
    1000x750183690
    1000x1000203996
    1500x10002548120
    2000x10002652129
    2000x150056140
    2000x200060152230
    2500x150068168248
    3000x1000174248
    3000x2000184275
    3000x3000210300
    4000x1000210300
    4000x2000219310
    4000x3000240360
    5000x2000255375
    5000x3000287420
    6000x2000293430
    6000x3000308460
    8000x2000370520
    8000x3000382570

    FAQ


    1. Are You A Manufacturer?
    Yes, We Are In This Line For 8 Years,We Do Best Quality And After Service For All Clients.

    2. Do You Have Your Designing Team?
    Yes,We Can Make It According To Your Requirement.


    3. How Long Is Your Delivery Time?

    Generally It Is 3-7 Days If The Goods Are In Stock. Or It Is 15-30 Days If The Goods Are Not In Stock, It Is According To
    Quantity.

    4. Could You Make The Products According To My Drawing ?

    Yes.
