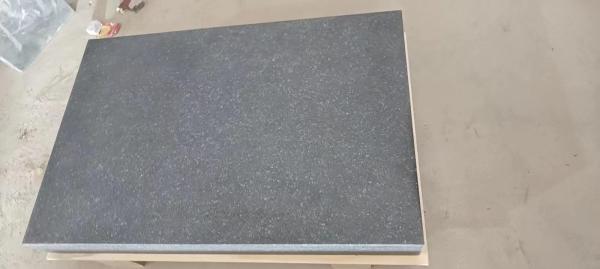

Granite Lapping and Control Plate Black Granite Surface Plates
granite surface plate are manufactured according to GB4986-85
standard to ensure the high quality.The products are always made
into ribbed plate or box-type, our company use the scraping process
to improve the precision of the products. Since the products are
customized, so the customers can customize the size according to
the actual needs.
Therefore, uniform texture granite laboratory inspection working
table is popular in all the world.
Precision Granite Surface Measuring Plate are a must for accurate measurement and provide a flat and stable
environment for inspection. They are free from temperature
distortion and offer an exceptionally sturdy measuring environment
due to their thickness and weight.
Measuring on uneven surfaces can give incorrect or inconsistent
inspection results, using a granite surface plate can help
eliminate this problem.
- Meet DIN876, grade 00 is for inspection room or lab, grade 0 is for
workshop.
- Supplied with manufacturers inspection certificate
- Optional accessory: stand for granite surface plate
jack for granite surface plate
Advantages:
• High quality material and precision machining process ensure
product quality.
• A traceable QC system is worthy of your trust.
• Efficient warehouse and logistics management ensure your delivery
time.
• A two-year warranty makes you without the worries behind.
Our Calibration Tools Granite Surface Plate refers to the advanced standards of the leading countries, and its
flatness tolerance is in accordance with the JB/T 7975-1999 Surface
Plate:
Grade 000 =1x(1+d/1000)/μm
Grade 00 =2x(1+d/1000)/μm
Grade 0 =4x(1+d/1000)/μm
Grade 1 =8x(1+d/1000)/μm
(d is the length of the diagonal)
Specification
Length × Width × Thickness (mm) | Weight (kgs) | Precision Grade (μm) |
000 | 00 | 0 | 1 |
300 × 200 × 50 | 17 | 1.5 | 3 | 6 | 12 |
300 × 300 × 50 | 19 | 1.5 | 3 | 6 | 12 |
400 × 300 × 70 | 25 | 1.5 | 3 | 6 | 12 |
400 × 400 × 70 | 48 | 2 | 3.5 | 6.5 | 13 |
630 × 400 × 100 | 76 | 2 | 3.5 | 7 | 14 |
630 × 630 × 100 | 155 | 2 | 4 | 8 | 16 |
800 × 500 × 130 | 156 | 2 | 4 | 8 | 16 |
1000 × 630 × 130 | 284 | 2.5 | 4.5 | 9 | 18 |
1000 × 750 × 150 | 338 | 2.5 | 5 | 9 | 18 |
1000 × 1000 × 150 | 450 | 2.5 | 5 | 10 | 20 |
1600 × 1000 × 200 | 963 | 3 | 6 | 12 | 24 |
2000 × 1000 × 200 | 1200 | 3.5 | 6.5 | 13 | 26 |
1600 × 1600 × 300 | 2312 | 3.5 | 6.5 | 13 | 26 |
2000 × 1600 × 300 | 2890 | 3.5 | 7 | 14 | 28 |
2500 × 1600 × 300 | 3612 | 4 | 8 | 16 | 32 |
3000 × 2000 × 500 | 9030 | 4.5 | 9 | 18 | 36 |
4000 × 2000 × 500 | 12040 | 5.5 | 11 | 22 | 44 |
6000 × 2000 × 700 | 25284 | 7.5 | 15 | 30 | 60 |
